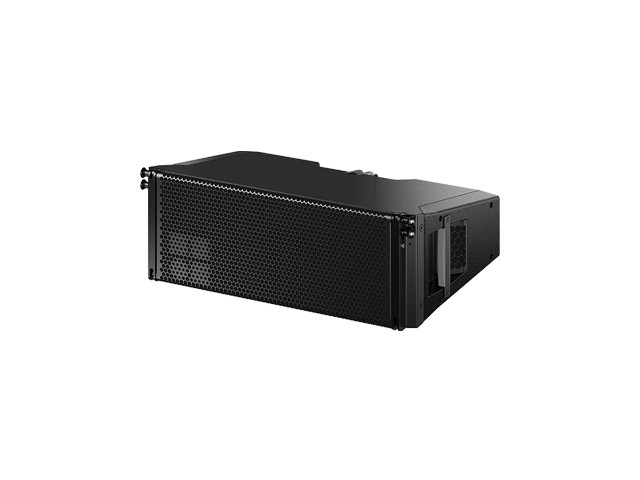

The CCL12 is a compact cardioid line array loudspeaker for small to medium-scale sound reinforcement. Owing to the arrangement of the forward and sideward LF drivers in combination with their processing functions, directivity is maintained across the entire operating bandwidth. The frequency response extends from 60 Hz to above 18 kHz.When the CCL Flying frame is used, up to 24 cabinets can be flown in vertical columns producing an 120° constant directivity dispersion pattern in the horizontal plane.

Technical details
Frequency Response (-5 db standard)	60 Hz - 18 kHz
Max Sound Pressure (1m. free field) D40/D80/D90	136 db
Components	2 x 7" front LF driver 2 x 5" side LF driver 2 x 1.75" HF compression driver Passive crossover network
Dimensions	209 x 593 x 355 mm
Weight	17.6 kg
